Simple installation with FullHD resolution
Long range Wifi cameras and recorder, no wiring required. Just connect the cameras' power supply to a nearby power outlet to run the system.
Protection 24H, 365 days.
In continuous recording mode you can view images up to 100 days in advance in FullHD quality. The recorder allows to install a hard disk of up to 6TB.
Plug & Play configuration
Wifi cameras are preconfigured and can be viewed directly just by powering the system.
Add the kit to the app on your smartphone by simply scanning a QR code.
Two recording modes
You can configure the recording continuously 24H or recording by motion detection.
|IP camera inputs||LAN port up to 4 channels|
|Video outputs||1 HDMI Full HD, 1 VGA|
|Video compression format||H.264|
|Display resolution||1920x1080, 1440x900, 1366x768, 1280x1024, 1024x768|
|Recording resolution||1080p / 960p / 720p|
|Simultaneous multifunction||Pentaplex: Direct, Recording, Playback, Backup and Remote Access|
|Recording method||Manual, scheduled, motion detection, alarm|
|Internal storage||1 SATA 3.5 "HDD up to 6TB (HDD not included)|
|Communication||USB (Mouse and Backup) / RJ45 (Ethernet) / Wi-Fi|
|Remote access||EseeCloud mobile phone application|
|Feeding||DC 12V / 2A|
|Dimensions||42 (H) x 258 (W) x 210 (Fo) mm|
|Image sensor||1/3 ”2 Megapixel Progressive Scan Sensor|
|Transfer rate||15 FPS|
|Compression||H.265 + / H.265 / H.264 + / H.264|
|Minimum illumination||0 Lux / 6 IR LEDs (20m)|
|Network interface||Ethernet 10/100 BaseT and Wifi IEEE 802.11b / g / n|
|Plug & Play access||Pre-registered in the NVR's own WiFi|
|Use||Suitable for outdoor IP66|
|Feeding||DC 12V / 1A|
|Dimensions / Weight||66 (H) x 66 (W) x 180 (Fo) mm / 500 g|

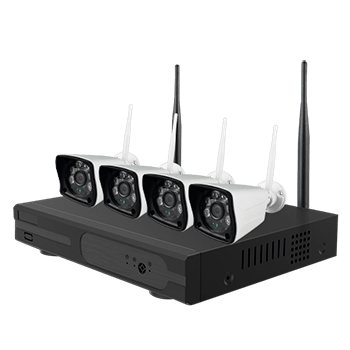

4 Channel IP NVR Recorder
4 IP cameras
Instructions for use
