NVS-A6WG
The best alarm without fees to keep your home protected
164,99€
VAT included
Details
Simple installation without cables
WIFI / GSM double security
Up to 60 wireless sensors
LCD screen
Wireless center panel
The alarm control panel has Wi-Fi and GSM communication to be able to be installed anywhere, as well as an LCD screen, RFID tag reader, touch keyboard, 4 wired inputs and up to a maximum of 100 wireless devices in total, all of this configured and controlled through the Tuya Smart app.
Use it as a phone
Through the SIM card, the alarm center allows it to be used as just another telephone, allowing calls to be received and made through the built-in keyboard. In addition, in the event of an alarm, the control panel will make calls and send SMS reporting the intrusion to up to 5 different users for both calls and SMS
Easy installation
The NVS-A6WG fee-free alarm is very easy to install, thanks to its wireless communication with all devices, all you have to do is power the central unit and place the sensors properly to protect the places that matter most to you.
ALARM SYSTEM
Play Video
Wide range of accessories
Nivian Smart offers a wide range of accessories to promote a high degree of security in your home.
All home control at your fingertips
With the TUYA application you can easily manage your entire home from your smartphone, from video surveillance, home automation and alarm systems
Central alarm remote control
Wide setting range
Possibility of holding conversations
Instant alert notification
Possibility of calls and SMS before an alarm
YOUR APP
Fully manage your smart home with a single app through your smartphone
Technical specifications
Magnetic contact
| Brand | Nivian Smart |
|---|---|
| Frequency | 433 MHz |
| Transmission distance | ≤ 80m in open space |
| Battery | DC 3V CR2477 |
| Current draw | Rest ≤ 10uA Alarm ≤ 15mA |
| Temp. functioning | -10º C ~ 55º C |
Remote control
| Brand | Nivian Smart |
|---|---|
| Operating modes | Armed, disarmed, partial armed and SOS |
| Frequency | 433 MHz |
| Transmission distance | ≤ 80m in open space |
| Battery | DC 3V CR2025 |
| Current draw | Transmission ≤ 7mA |
| Dimensions | 57x31x11 mm |
Control Panel
| Brand | Nivian Smart |
|---|---|
| RF frequency | 868 MHz and 433 MHz |
| Internal security | Anti-opening tamper |
| Internal siren | 95dB |
| RFID reader | 125KHz |
| Communication | WiFi / GSM |
| Maximum devices | 60 devices, 10 remote controls and 30 RFID tags |
| Wired inputs / outputs | 4 wired device inputs and 12VDC 1A output |
| Cover material | ABS plastic |
| Feeding | AC 110 ~ 250 V, 50/60 Hz |
| Backup battery | DC 7.4V / 600 mAh Lítio |
| Temp. functioning | -10º C ~ 55º C |
| Dimensions | 188 (W) x 125 (H) x 25 (F) mm |
PIR detector
| Brand | Nivian Smart |
|---|---|
| Technology | Volumetric PIR |
| Detection field | 8 m / 110º / Installation 2 m |
| Frequency | 433 MHz |
| Transmission distance | ≤ 80m in open space |
| LED indication | Alarm, tamper, signal |
| Battery | DC 3V (2 AA LR6 1.5V batteries) |
| Current draw | Rest ≤ 90uA Alarm ≤ 9.5mA |
| Temp. functioning | -10º C ~ 55º C |

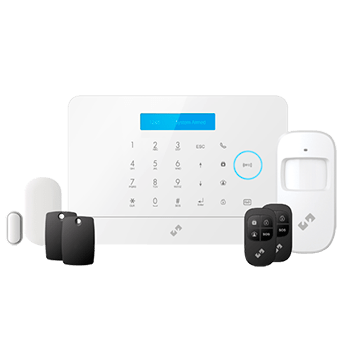

Box contents
Control Panel
NVS-D1A PIR Detector
NVS-D3D Magnetic Contact
2x NVS-RC2 remote control
2x RFID tag
Instructions for use
