Details
High image quality
Its high-quality 5 Megapixel sensor provides a high level of detail and sharpness.
It can work both during the day and in total darkness thanks to powerful infrared LEDs with a range of up to 30 meters.
No feeder needed
Powered directly from the network cable (Power over Ethernet) if connected to a recorder or switch with integrated PoE.
Compatible Products
-
NV-KIT81-4CAM-5M
IP Video Surveillance KIT 8 channels 5Mpx
-
NV-KIT41-4CAM-5M
IP Video Surveillance KIT 4 channels 5Mpx
Technical specifications
| Brand | Nivian |
|---|---|
| Image sensor | 1 / 2.7 "Progressive CMOS |
| Maximum resolution | 5 Megapixel (2952 x 1944) |
| Main Stream Rate | 5M / 4M / 3M / 1080p / 720p (1 ~ 15 FPS) |
| Compression | H.265 / H.264 |
| Bitrate | 256 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Minimum illumination | 0.05 Lux / F1.2 |
| Infrared lighting | 0 Lux / 18 SMD LEDs (30m) |
| Image enhancements | DWDR, BLC, Privacy Masking |
| Day Night | Removable ICR mechanical filter |
| Network interface | 10/100 BaseT Ethernet |
| Internal storage | Not available |
| Interoperability | ONVIF |
| Feeding | DC 12V / 7W, PoE IEEE802.3af |
| Degree of protection | Waterproof IP66 |
| Temp. functioning | -30º C ~ + 55º C |
| Measurements | 115 mm (Fo) x 63 (Ø) mm |
| Weight | 225 g |
Box contents

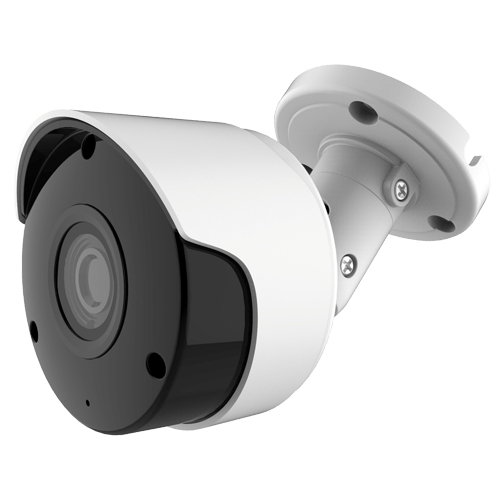

Nivian IP Camera
Installation material
Instructions
